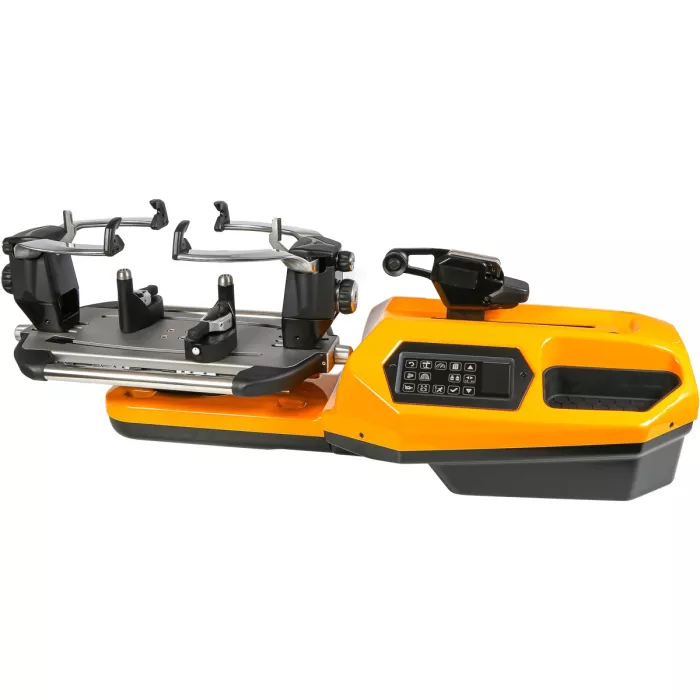

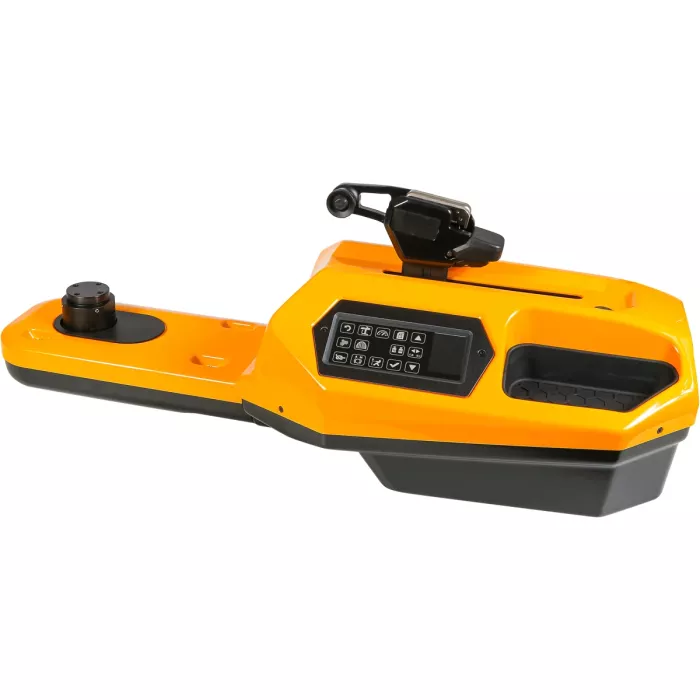

Cb-26 electronic footless stringing machine

Delivered as a gift:

The machine comes with a set of ropes and accessories worth 52€(this gift will be offered to you when you add it to your basket).

SPECIFIC ADVANTAGES OF THE CB-26

1. Electronic tensioning system :
a) High precision thanks to :

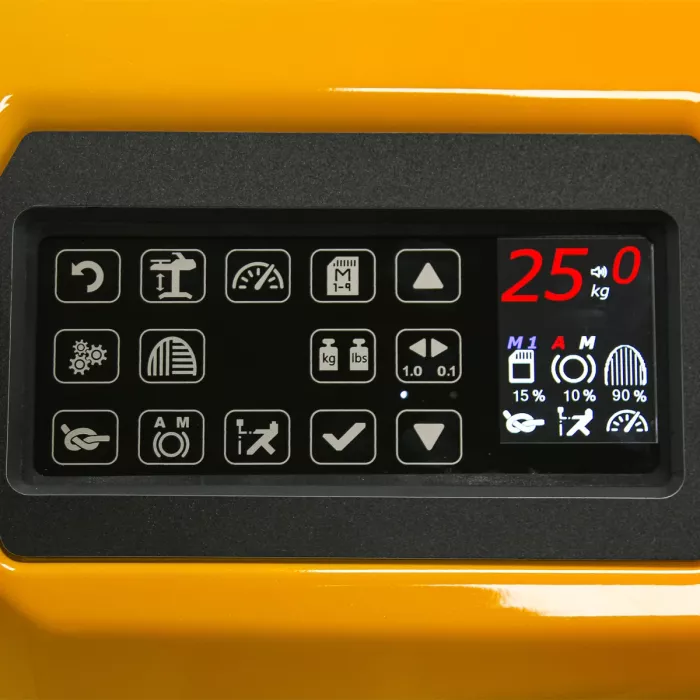

- tension adjustment system with LED display for highly precise tension setting (to within 100 grams).
- string stretch recovery mechanism.
- faster, more powerful straight-line system
- fast, powerful motor
- adjustable tension from 5 to 40 kg
- knot" button to add 10% tension at knots to prevent loss

b) Time-saving thanks to :
- the placement of the tensioning switch in the path of the rope positioning gesture.
- automatic return of the pulling head to its initial position
- continuous traction of the motor, avoiding jerks at the end of the cycle, when the desired tension is reached.
- when the tension is applied to the rope, the display turns green.
- 9 pre-settings can be memorized and retrieved at the touch of a button.

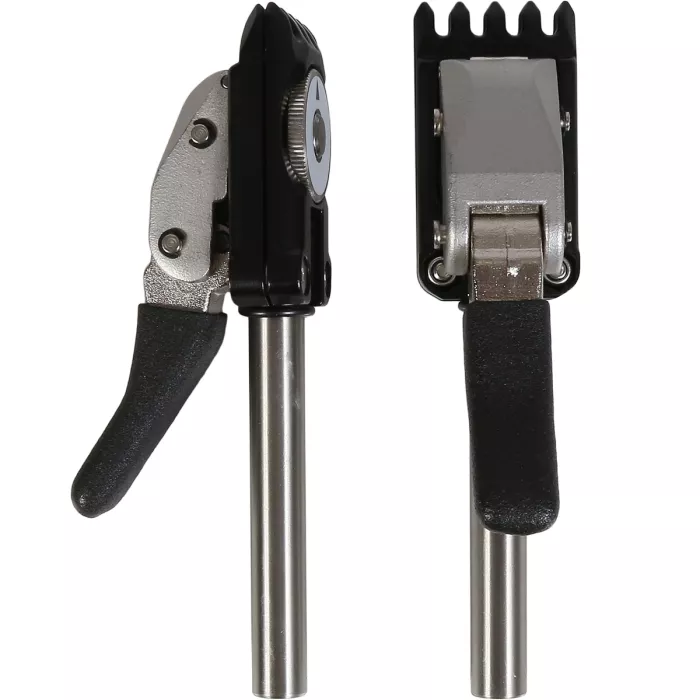

2. String clamping system: these 2 independent central duals, each pivoting 360°, are used to clamp both ascending and traversing strings. They enable the uprights to be strung in parallel, i.e. alternately one string to the right, then to the left, which is recommended for high-tension strings, thus avoiding any risk of frame deformation. Clamping the clamps at 2 points (clamp axis and rope) ensures a long service life.
- rapid clamp locking on the swivel base: the lever locks in just a quarter-turn for perfect clamping.
- tool-free pressure adjustment: a manually adjustable thumbwheel adjusts clamp pressure to the rope's diameter.
- perfect clamp adhesion: a diamond powder spray prevents the rope from slipping.
- automatic release of the base after removing the clamp to save time.

3. Frame support and tooling:
- Movable arm system for quicker frame installation and excellent support.
- Adjustable vice for stringing all types of rackets (tennis, squash, badminton), ensuring maximum stability.

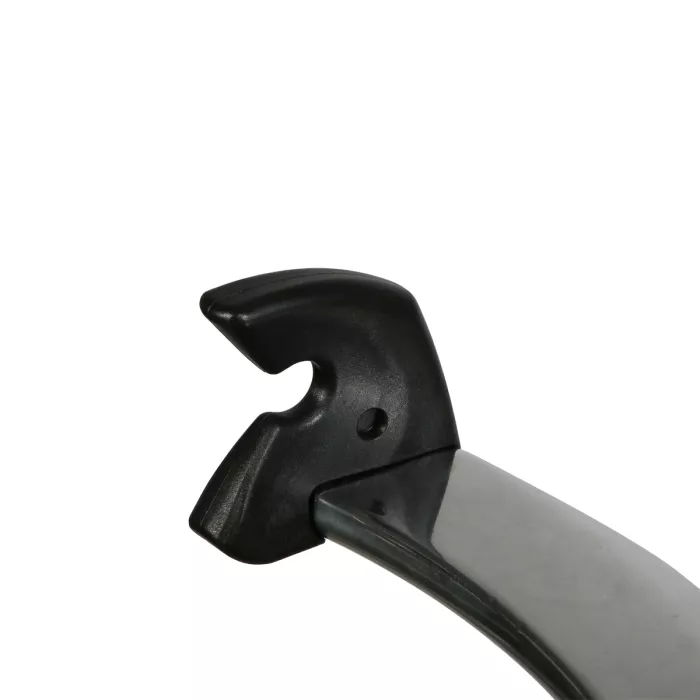

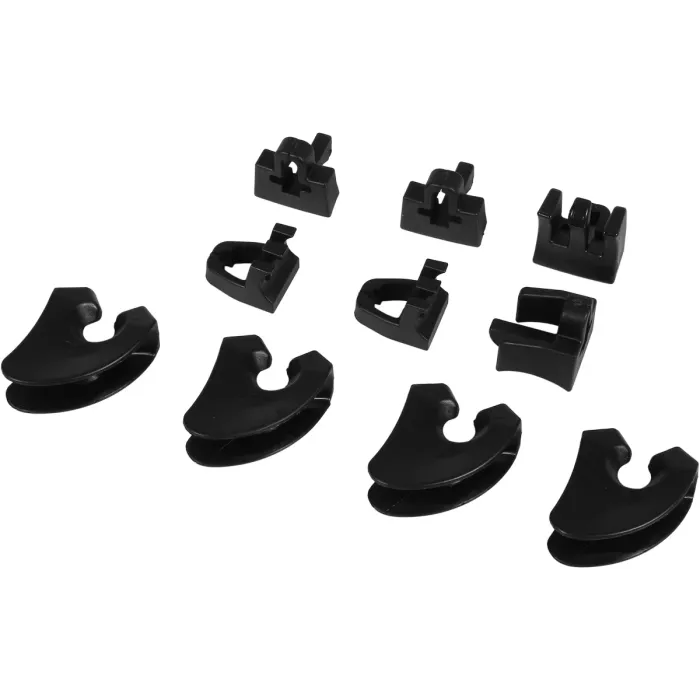

- 6 support points for excellent support of all frame types.
- Precise frame adjustment, thanks to 2 adjustment screws
- 2 screws on each side of the frame allow you to easily move the 2 arms that hold the racket in place, thus adapting perfectly to the size of the racket.

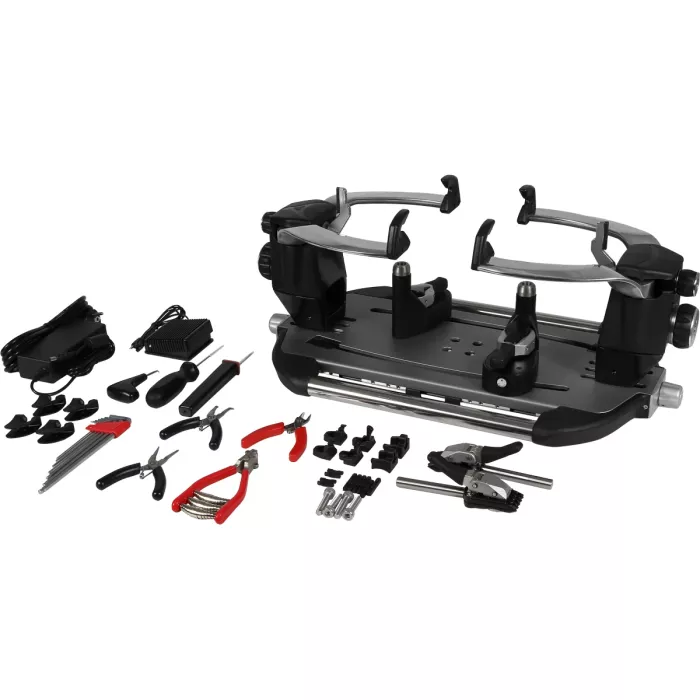

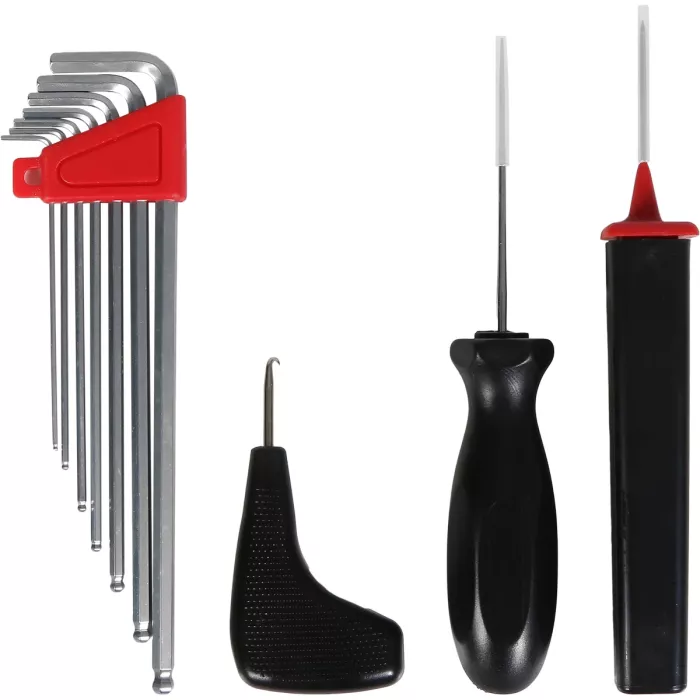

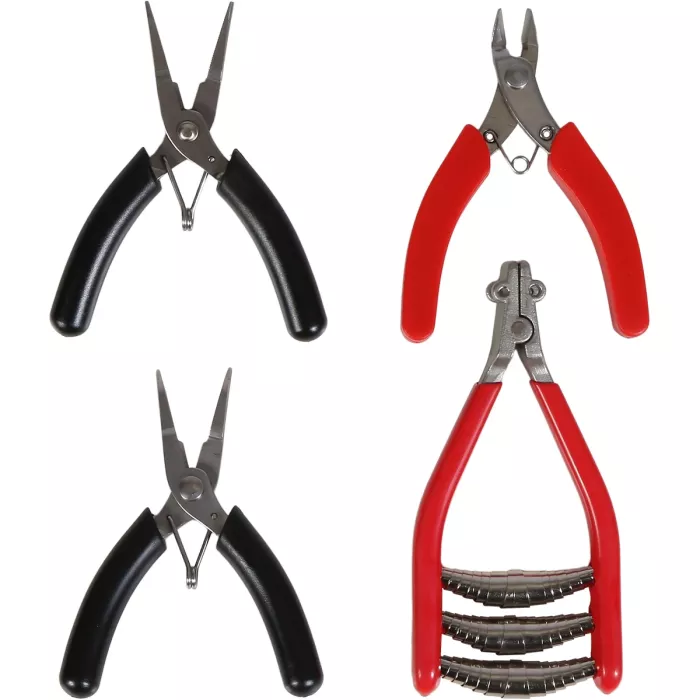

- All our machines come with a complete set of tools for stringing: starting pliers, cutting pliers, two multi-function pliers, a punch, a string guide, a straight awl, a kit for modifying the pliers in badminton mode, a badminton hook and adjustment keys.
A large, integrated tool storage compartment is located under the control panel, and a small compartment keeps used tools close at hand while you're stringing.

4. Fast stringing: it takes just 20 minutes to string a racket with this machine.

5. Easy to use: A detailed "how to string" is available here. It will help and guide you through your first strings.

6. Tennis, Badminton and Squash: The CB-26 strings tennis, badminton and squash rackets.

7. Warranty: The CB-26 comes with a 5-year warranty on the mechanical parts and a 2-year warranty on the electronic tensioning system, clamps and tools.

8. Tennispro advantage: In the event of a problem, our in-house after-sales service, backed by 40 years' experience, will take care of the repair or replacement of your stringing machine. Trust our expertise to provide you with the best service!

CB-26 manual

Machine delivered without foot
Please note that this machine is not designed to be used without a foot. Please choose a manual or electronic foot (subject to availability). These options are available in the stringing machine accessories or in the basket.
