Name: Electronic stringing machine cb-20 with stand
Brand: TENNISPRO
Price: 4179.87 EUR
Availability: InStock

Electronic stringing machine cb-20 with stand

Krājumi: Ir noliktavā
Zīmols: TENNISPRO
Preces kods: CB20
Weight: 50.00kg
GTIN: CB20-TENNIS

Cena ar PVN 21%

4179.87€

Bez nodokļa: 3454.44€

Daudzums

Ielikt grozā

Pirkt tagad Jautājums?

Pievienot vēlmju sarakstam Pievienot salīdzināšanai

Apraksts un raksturojums

SPECIFIC ADVANTAGES OF THE CB-20

1. Electronic tensioning system:
a) High precision thanks to:

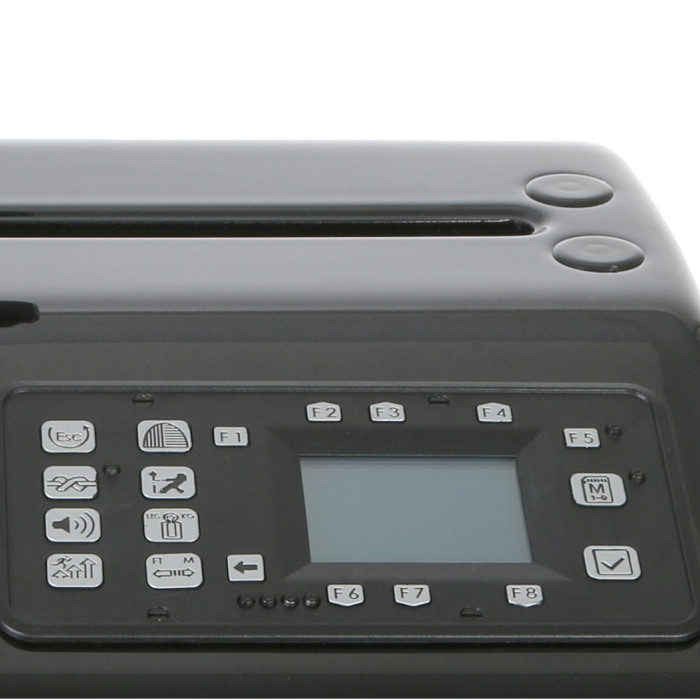

- the tension adjustment system with LED display allowing highly precise tension adjustment (to within 100 grams).
- the rope stretch recovery mechanism
- rectilinear system more powerful and fast to use
- motor more powerful and fast
- the adjustable tension from 5 to 40 kg
- the "knot" button which adds 10% tension at knot time to avoid any loss

b) Time-saving thanks to:
- Touch Pad allowing you to slide your finger rather than press a button to trigger tensioning
- the placement of the tensioning switch in the path of the rope positioning gesture.
- the automatic return of the pulling head to its initial position
- the continuous pulling of the motor, avoiding jerks at the end of the cycle, when the desired tension is reached.
- the ability to store 9 tensions and retrieve them at the touch of a button.
- the ability to measure rope distance to avoid losses on a coil

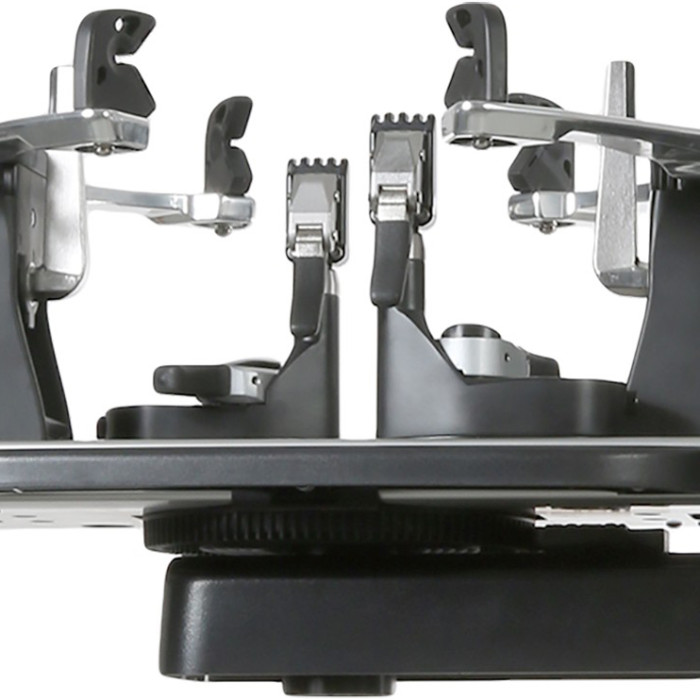

2. String locking system: These 2 independent central dual clamps, each swiveling 360°, are used to lock both ascending and traversing strings. They enable the uprights to be strung in parallel, i.e. alternately one string to the right, then to the left, which is recommended for high-tension strings, thus avoiding any risk of frame deformation. The 2-point clamping of the clamps (clamp axis and rope) ensures a long service life.
- rapid clamp locking on the swivel base: the lever locks in just a quarter-turn for perfect clamping.
- tool-free pressure adjustment: a manually adjustable knob adjusts the clamp's pressure on the rope to suit its diameter.
- perfect clamp grip: a diamond powder spray prevents any risk of the rope slipping.
- automatic base release after removing the clamp to save time

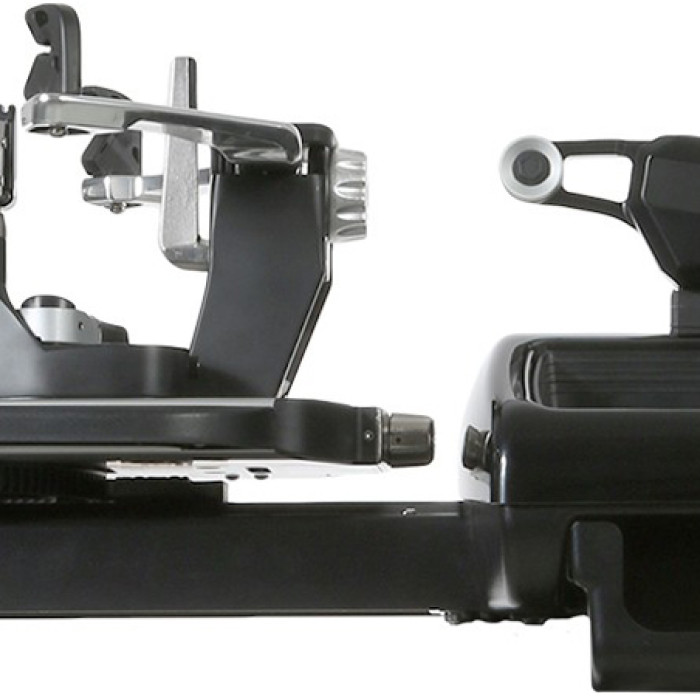

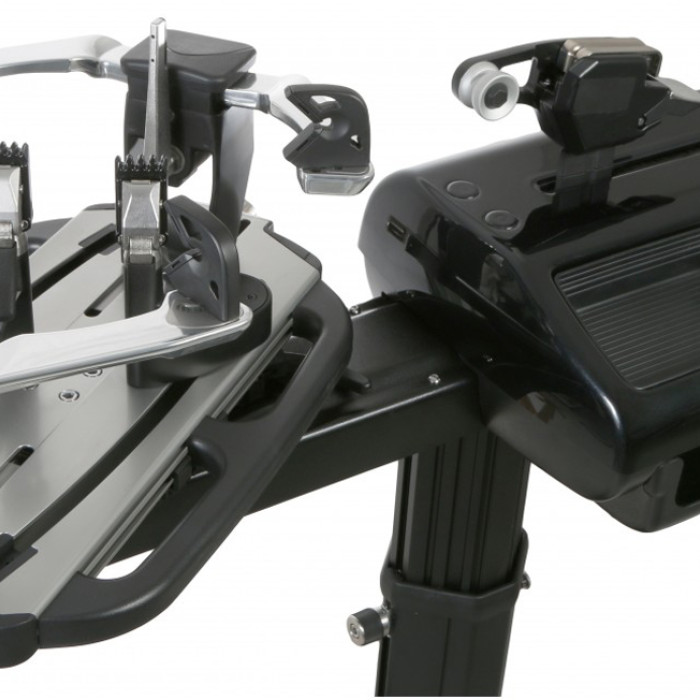

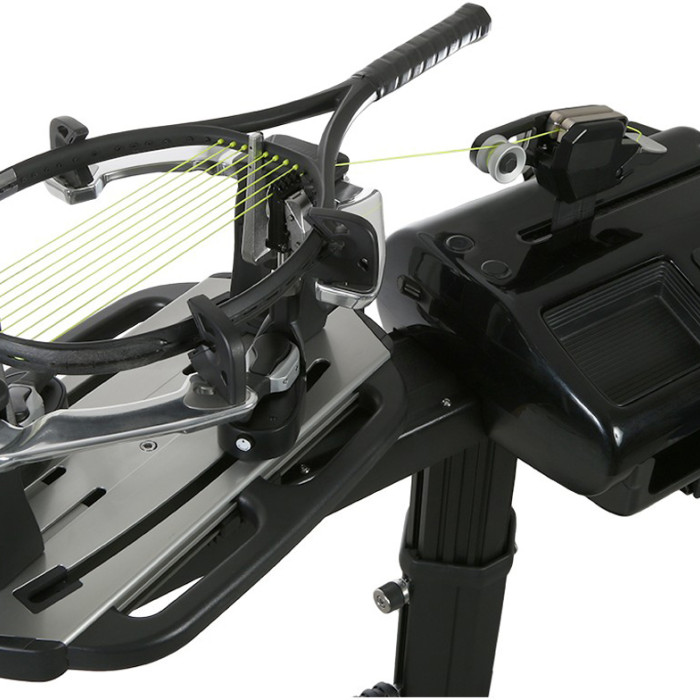

3. Frame support and tooling:
- Movable arm system for faster frame installation and excellent support
- Adjustable vice for stringing all types of racquets (tennis, squash, badminton) with the best possible stability.
- 6 support points ensure excellent support for all frame types.
- Fine adjustment of the frame, thanks to 2 fine adjustment screws
- 2 Screws are placed on each side of the plate to allow you to easily move the 2 arms that hold the racket and thus adapt perfectly to the size of the racket.

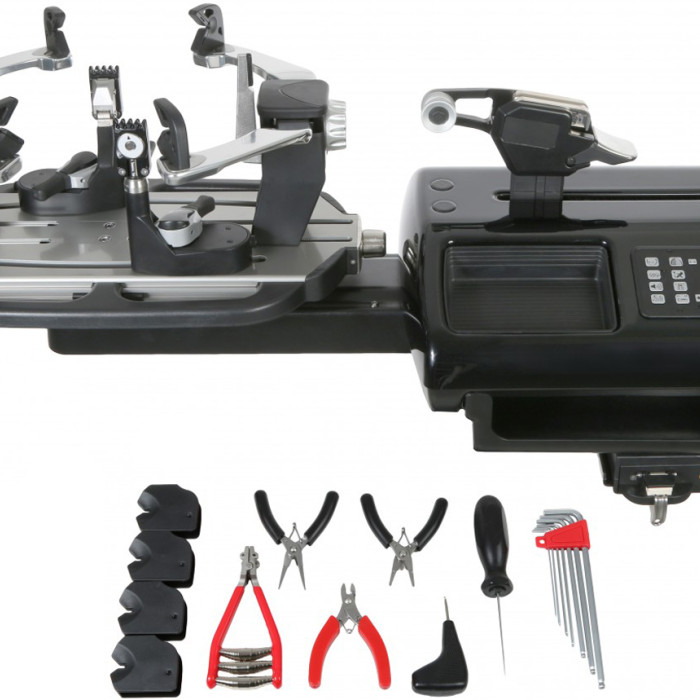

- All our machines come with a complete set of stringing tools: a starting clamp, a cutting clamp, two multi-purpose clamps, a straight awl, a kit for modifying the clamps in badminton mode, two flying clamps for stringing badminton and adjustment wrenches.

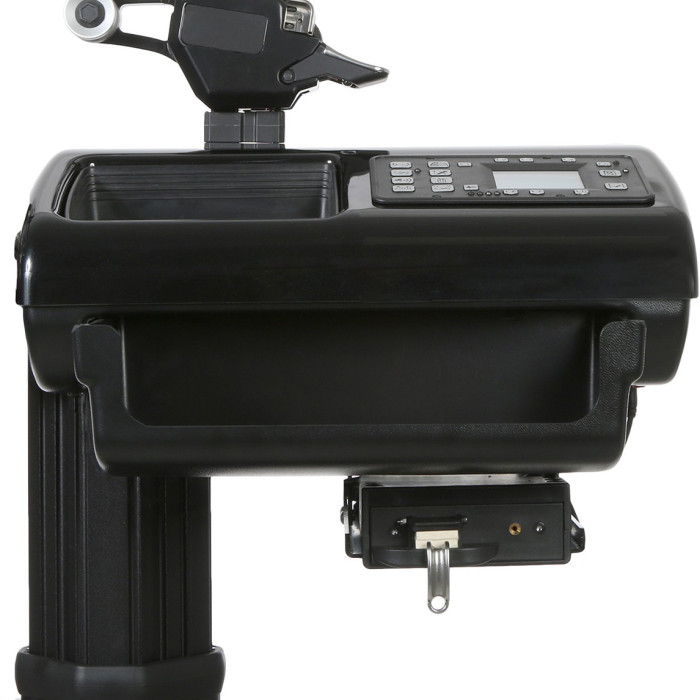

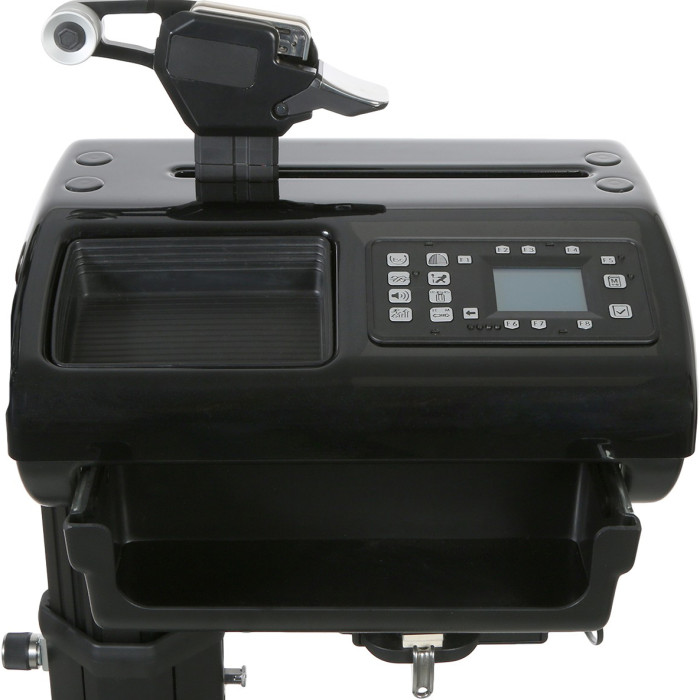

An integrated tool storage compartment allows them to be stowed away under the control panel, and a small space lets you keep used tools close at hand while you're stringing.

4. Fast stringing: Just 20 minutes are needed to string a racket with this machine.

5. Easy to use:A detailed "method to string" is available here. It will help and guide you through your first strings.

6. Tennis, Badminton and Squash: The CB-20 strings tennis, badminton and squash rackets. For badminton rackets, however, it is less suitable than the CB20 Badminton, which has a smaller, more suitable cradle.

7. Warranty: The CB-20 is guaranteed for 5 years for the mechanical part and 2 years for the electronic tensioning system, clamps and tooling.

8. The Tennispro +: In the event of a problem, our in-house after-sales service, backed by 40 years' experience, will deal directly with repairing or changing parts on your stringing machine. Trust our expertise to offer you the best service!

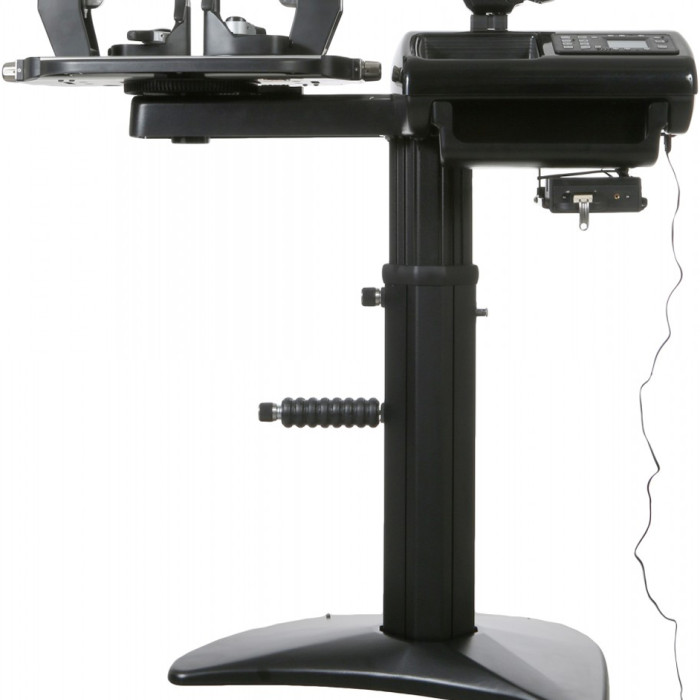

Machine delivered with stand

CB20 stringing machine assembly guide

Discover the CB20 manual
